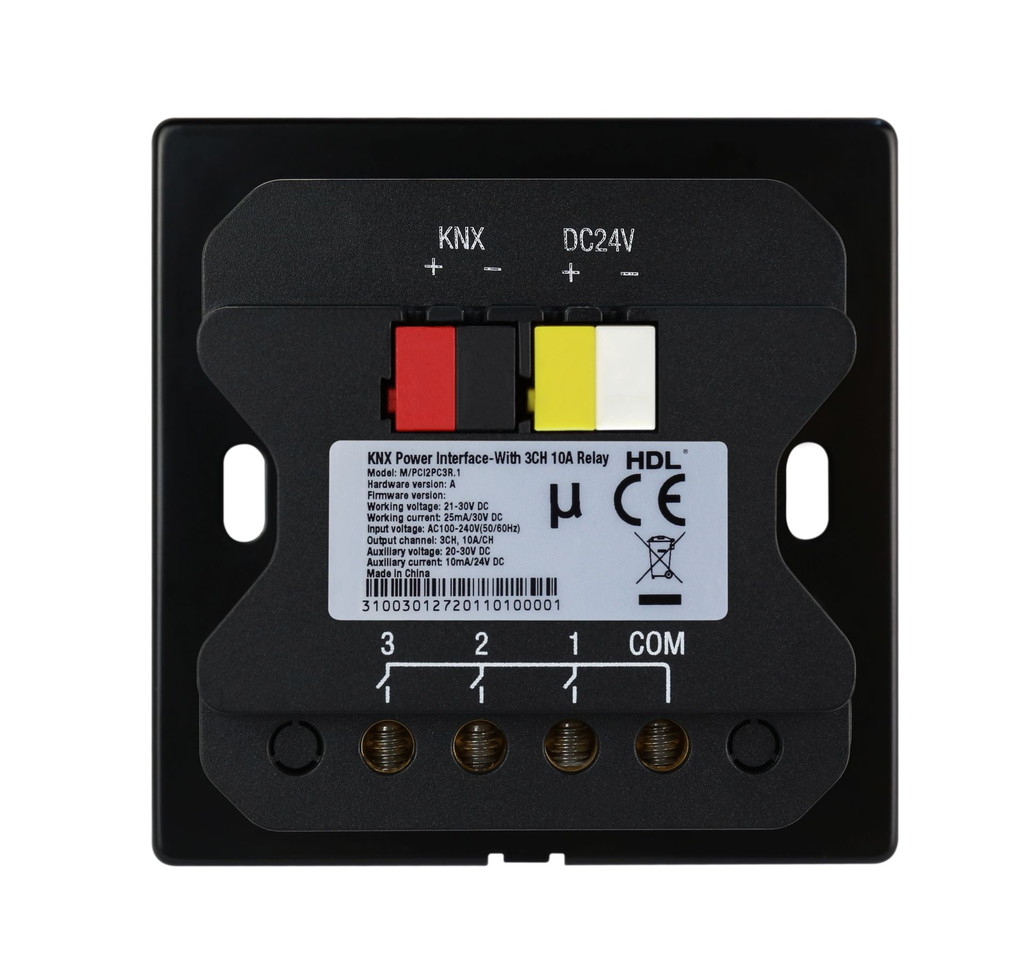

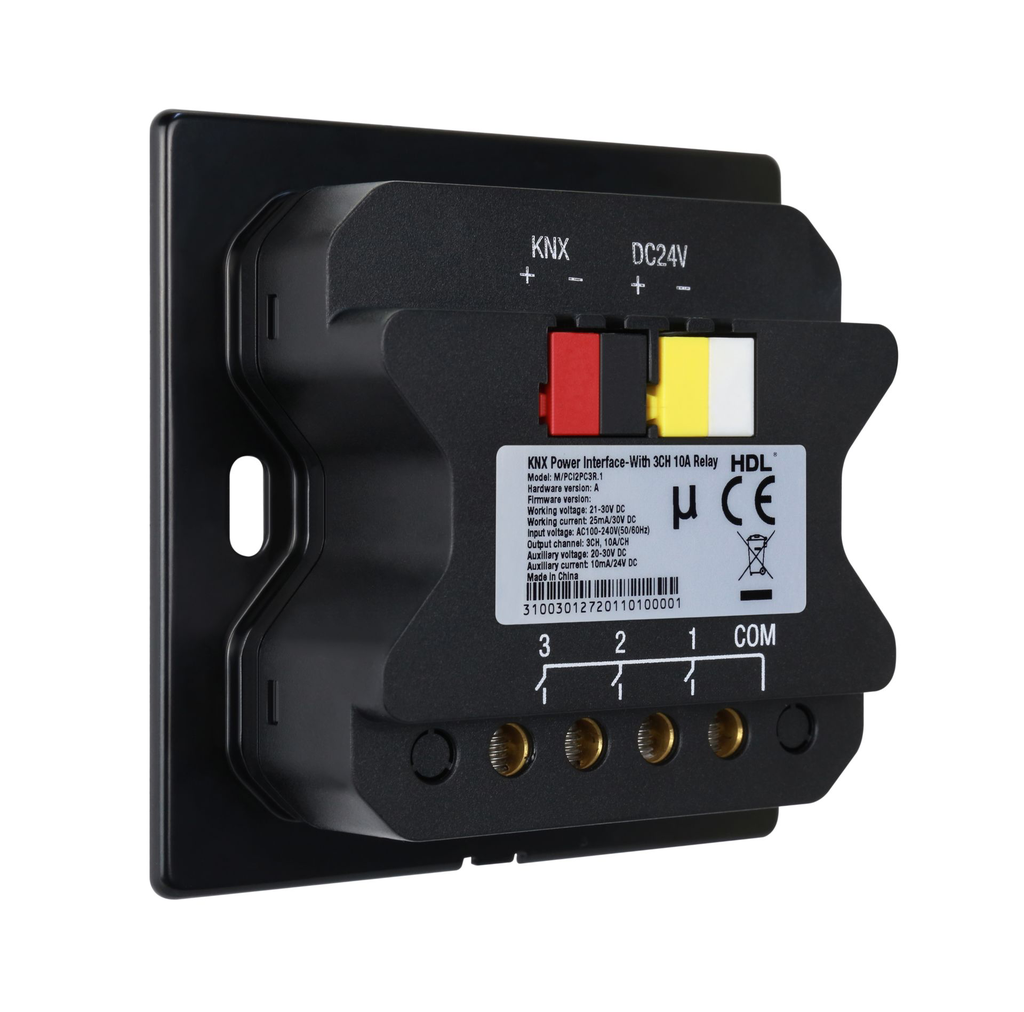

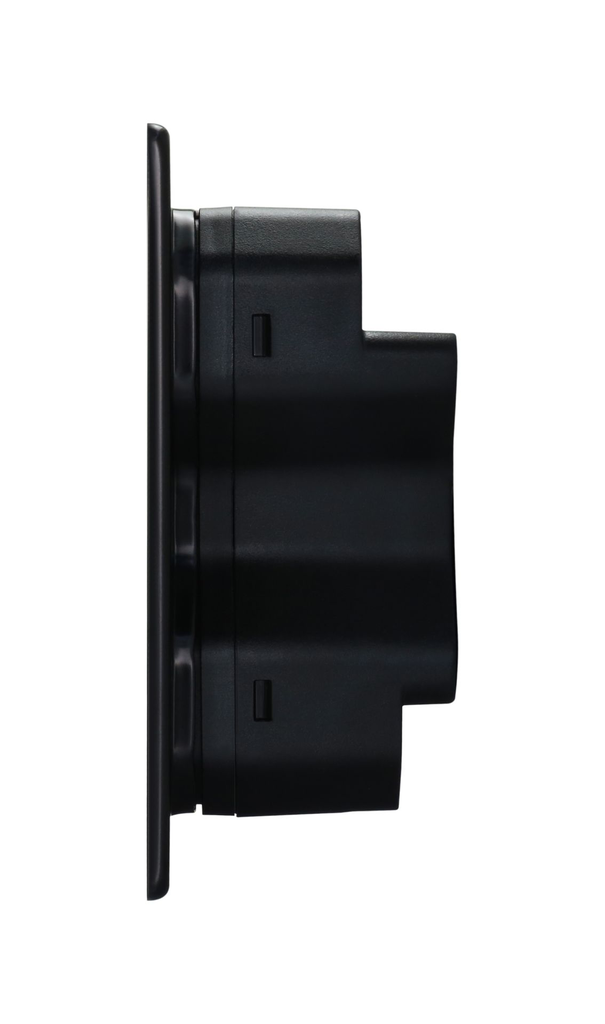

Lighting Control Actuator
- Input voltage: AC100-240V (50/60Hz)
- Auxiliary power input: 10mA/24V DC
- 3CH 10A magnetic latching relay output

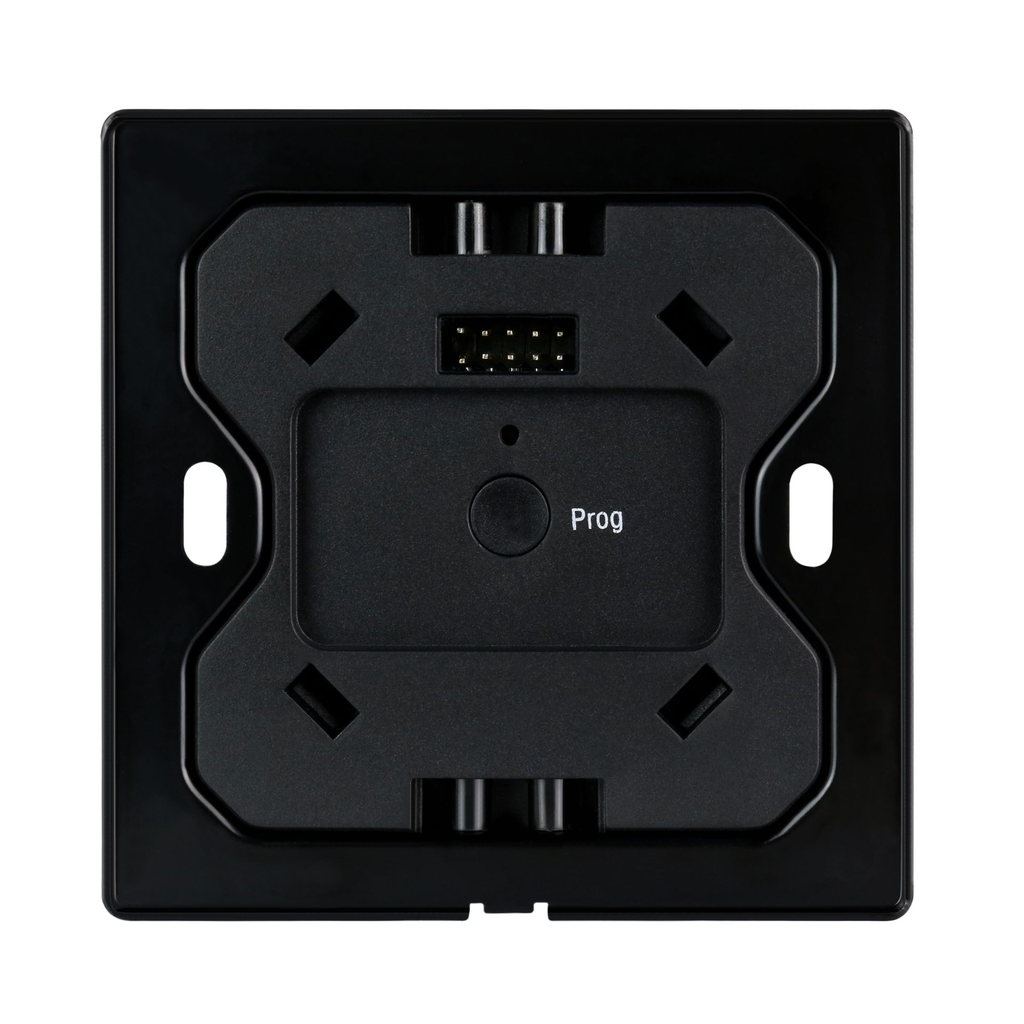

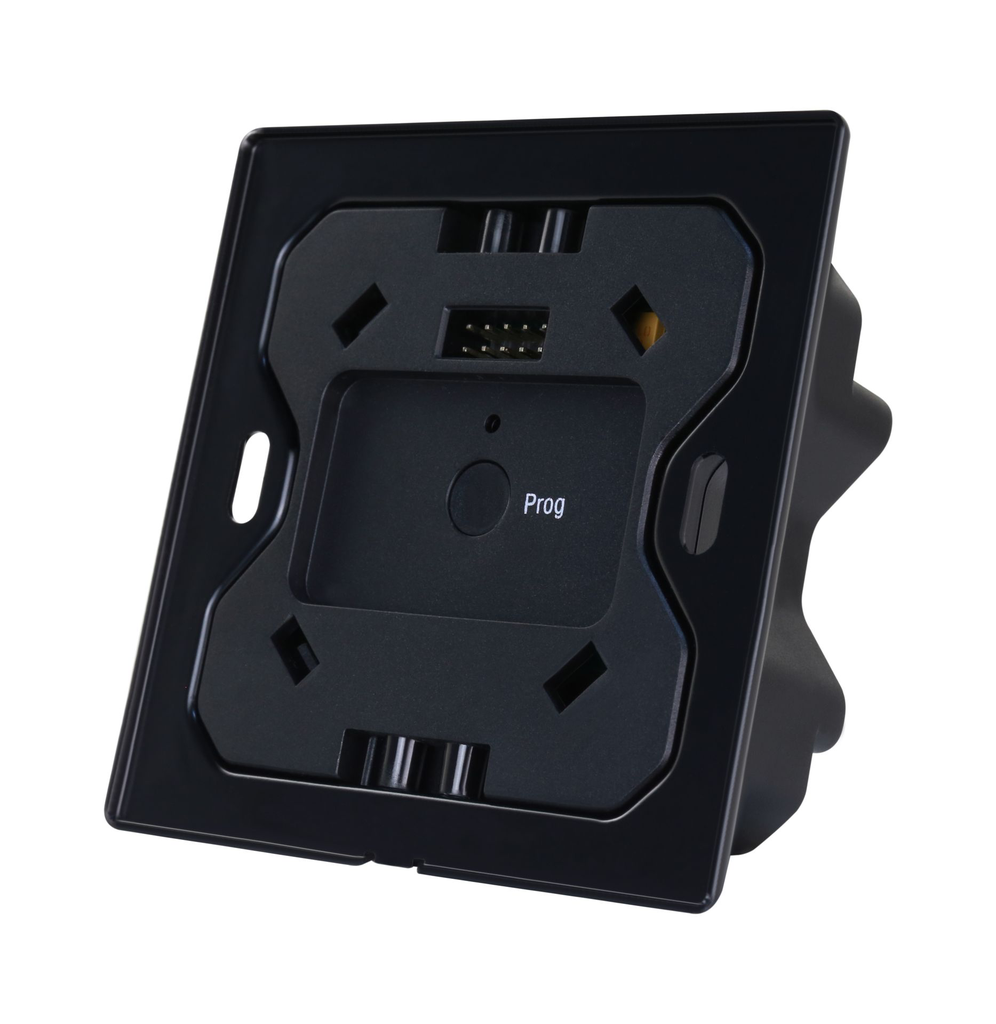

- Long-press the programming button to turn all relay channels on/off
- Provides DC power and communicates to Granite Display, EU Type panel that model number with-A2 and Granite Series EU
- Comply with 86*86 size junction box only
